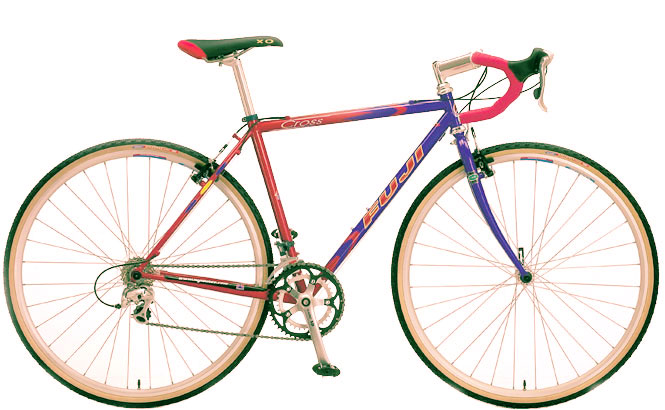

2001 Fuji Cross -- Original Specifications
Disclaimer: This content was unabashedly lifted from fujibikes.com in case they delete it!
If you're reading this, surely you are aware of cyclocross: a muddy, exhausting way to spend a Sunday morning. Should you be suffering from whatever it is that compels people to do 'cross, or merely lusting after a truly versatile road/off-road bicycle, we present the Fuji Cross. This is no hybrid or dirtified road bike. Produced in six sizes, Fuji's Cross is light, quick and race-ready, frame, wheels and parts. Components? What isn't (carefully selected) Shimano 105, Ritchey or Avid is Selle Italia, Zoom or Time. Frame and fork are Cro-Moly steel, cables appropriately routed. Race-ready.
That said, as fine a 'cross tool as a Cross is, it's a great "everything" bike. A Cross won't complain if you don't race it. You can ride trails and short road rides as-is. Or put skinny road tires on it; It'll roll like a road bike. Or mount fenders and lights on it and commute to work. Or put fat road tires on it, bolt a rack on it and it'll tour like a... Well, not like a Fuji Tour, but darned well. Great 'cross bike, great "anything" bike: Fuji Cross.
Features:
- Specially designed Columbus Genius vanadium frame with triple-butted CrMo cross fork
- 18-speed 'cross specific Shimano drivetrain with Time Alium clipless pedals
- Precision sealed cartridge bottom bracket
- Ritchey alloy wheels with Ritchey Speedmax 'cross tires
Specifications:
- Sizes: 49, 52, 54, 56, 58 and 61cm
- Color:Blue/Red two-tone
- Main Frame:Columbus Genius double-butted Vanadium
- Rear Triangle: Columbus double-butted & tapered Cro-Moly
- Dropouts: Ritchey investment cast
- Fork: Triple-butted, tapered Cro-Moly cross
- Details: Double water bottle mounts
- Crankset: Sugino XD-2 forged road crank, 36/48T
- Bottom Bracket: Precision sealed cartridge
- Pedals: Time Alium clipless
- Front Derailleur: Shimano Deore LX, FD-M571, clamp-on, 28.6mm
- Rear Derailleur: Shimano 105, RD-5500-SS, 9-speed
- Shifters: Shimano 105, ST-5500, 18-speed
- Cogset: Shimano CS-HG50-9, 9-speed, 12/25T
- Chain: Shimano CN-HG72, 9-speed
- Front Hub: Ritchey Comp road, 32H
- Rear Hub: Ritchey Comp road cassette, 32H
- Spokes: Stainless, double-butted, 14/15g
- Rims: Ritchey Aero Pro, OCR rear, 32H
- Tires: Ritchey SpeedMax Cross, 700 x 32c
- Brakes: Avid Shorty 4.0 cantilevers
- Brake Levers: Shimano 105, ST-5500-C
- Headset: Ritchey Fuzzy Logic threadless
- Handlebar:Ritchey Logic Road Comp
- Stem: Ritchey Logic Road Comp
- Tape/Grip: Cork wrap
- Saddle: Selle Italia XO with gel insert, MicroFibre cover, FEC alloy rails
- Seatpost: Zoom Superlite micro-adjustable alloy, 27.2x250mm
- Seat Clamp: Fuji superlight alloy, laser etched
- Weight: 21.5 lbs. (9.8 kg.)
Cyclocross Geometry:
| A | C-2 | D | E | F* | G | H | I | J | K | ||||
| SEAT TUBE C/T | LEVEL TT LENGTH | CHAIN STAY LENGTH | BB DROP | FORK OFFSET | HEAD TUBE ANGLE | SEAT TUBE ANGLE | WHEEL BASE | STAND OVER HEIGHT | BB HEIGHT | STEM EXTENSION | STEM ANGLE | H-BAR WIDTH | CRANK LENGTH |
| 490MM | 520MM | 430MM | 67MM | 45MM | 72 | 74 | 989.5 | 766 | 279MM | 90MM | -17 | 400MM | 170MM |
| 520MM | 540MM | 430MM | 67MM | 45MM | 72 | 74 | 1009.9 | 784.3 | 279MM | 90MM | -17 | 400MM | 170MM |
| 540MM | 550MM | 430MM | 67MM | 45MM | 72 | 73 | 1010.3 | 797.3 | 279MM | 100MM | -17 | 400MM | 170MM |
| 560MM | 560MM | 430MM | 67MM | 45MM | 72 | 73 | 1020.3 | 806.6 | 279MM | 100MM | -17 | 420MM | 170MM |
| 580MM | 570MM | 430MM | 67MM | 45MM | 72 | 73 | 1030.6 | 823.3 | 279MM | 100MM | -17 | 420MM | 175MM |
| 610MM | 590MM | 430MM | 67MM | 45MM | 72 | 72 | 1040.3 | 844.9 | 279MM | 120MM | -17 | 440MM | 175MM |
